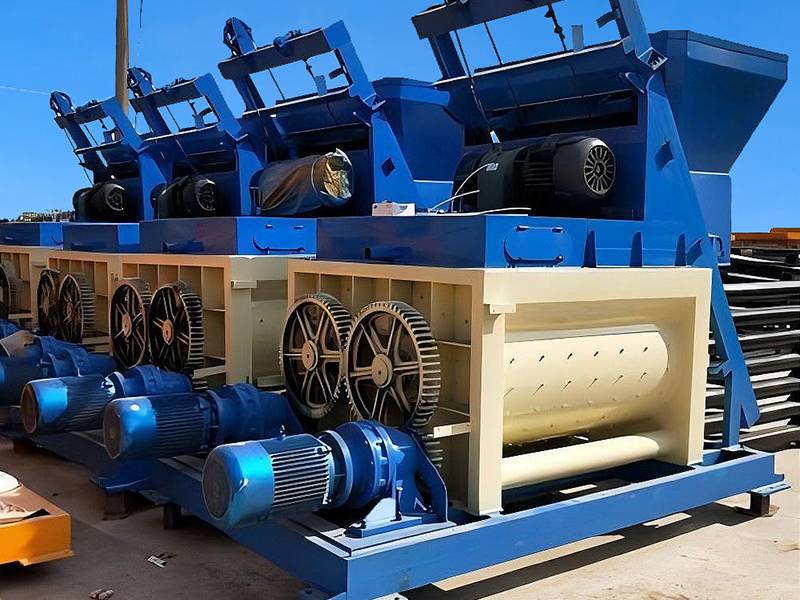

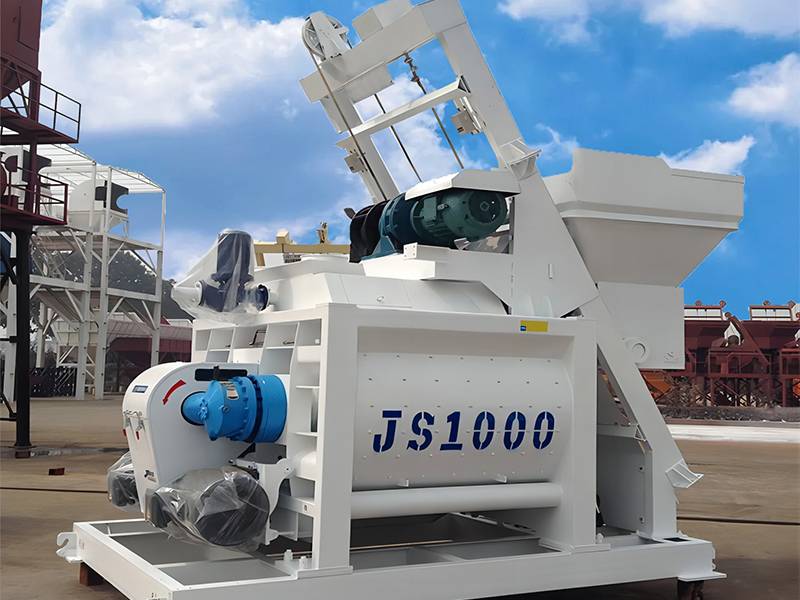

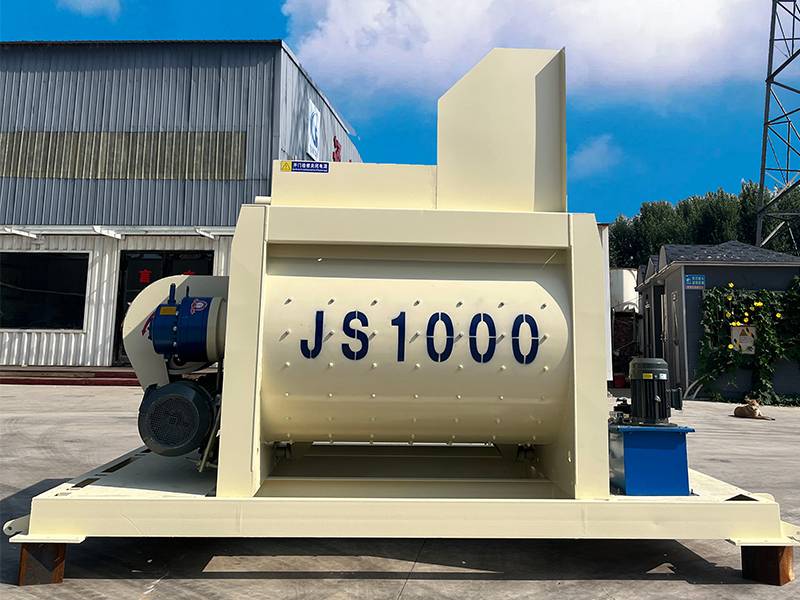

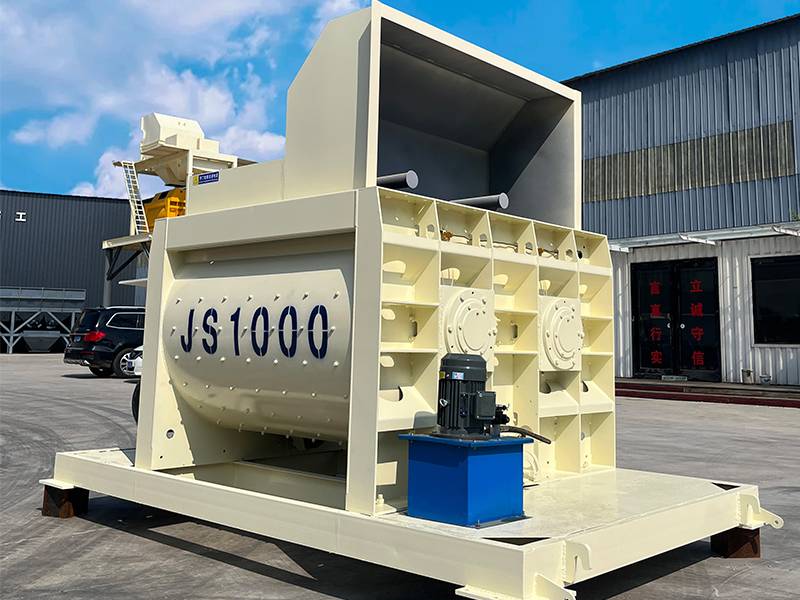

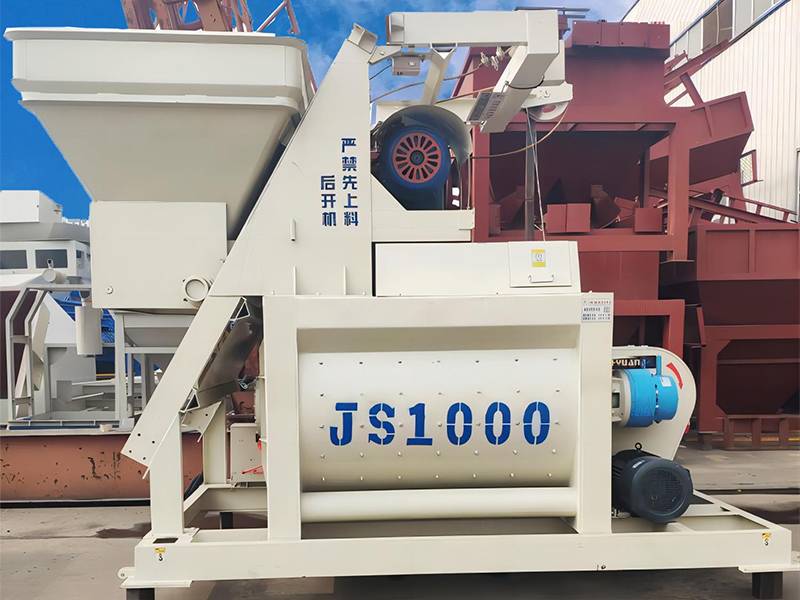

JS1000 Double Shaft Concrete Mixer

  • Model: JS1000
  • Productivity:50m3/h
  • Voltage:380V, 50/60Hz, 220V, 440V, can be customized
  • Power:37kw
  • Mixing time:30s
  • loading Type : Hopper/Belt
  • Application : Construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

JS1000 Double Shaft Concrete Mixer

JS1000 concrete mixer is a double-horizontal-shaft forced mixer. Each drum can mix 1000L of concrete (referring to the volume of compacted concrete), and can produce 50 cubic meters per hour.


Main Details

Mixing System

JS1000 Double Shaft Concrete Mixer

1.The mixing system is composed of motors, belt pulleys, reducers, open gears, mixer drums, oil supply device and other mechanisms.
2.High-temperature resistant all-copper motor works for a long time without burning the machine.
3.Equipped with high performance cycloidal pin reducers, bring the whole machine stable running and low noise.
4.The mixing shaft, mixing arm, mixing blade and liner are made of thickened and wear-resistant high manganese-chromium alloy, which make the mixing evenly and stably.
5.Multiple shaft end sealing protection technology, high production efficiency and long service life without slurry leakage.


Feeding System

JS1000 Double Shaft Concrete Mixer

1.The upper part of the feeding frame can be folded, which is convenient to reduce the transportation height during transportation.
2.The ascending limiter (limit switch) prevents the hopper from rushing to the top, which plays a role in limiting and safety protection.
3.Wire rope pulley, precision machining, safe and reliable. Wire-contact steel wire rope is adopted, which has small gap contact stress, small wear, large bearing capacity and long service life.


Discharging System

JS1000 Double Shaft Concrete Mixer

1.The discharging system is composed of discharging door, air cylinder or hydraulic cylinder, gas pump, reversing valve and gas distribution valve. There are three  discharge way: hydraulic control, pneumatic control and manual control.
2.The discharge door is installed at the bottom of the mixer, and pneumatic discharge is through the air cylinder or hydraulic cylinder.
3.Manual operation, using manual control lever. It is used for emergency unloading in case of temporary power failure, or when pneumatic or hydraulic cylinder fails.


Water Supply System

JS1000 Double Shaft Concrete Mixer

1.The water supply system consists of water pump, throttle valve, cleaning device and spraying device.
2.With the 360-degree spraying device, the spraying speed of water flow is high, the coverage of water flow is large, the spraying efficiency is improved, the water consumption is greatly reduced, and the production cost is reduced.
3.Throttle valve can adjust the water-saving flow and limit the speed of fluid passing through the valve, so as to control the flow rate and pressure.


Electrical System

JS1000 Double Shaft Concrete Mixer

1.The electric control system is equipped with air switch, fuse and thermal relay, which has the functions of short circuit protection and overload protection.
2.All control buttons, air switch handles and indicator lights are evenly arranged on the distribution box door, and a door lock is provided. A small protective door is arranged outside the button.
3.The electrical components in the distribution box are mounted on an insulating board, which is safe and reliable and convenient to operate and maintain.


Advantages


Service

JS1000 Double Shaft Concrete Mixer

Pre-sale Services

  1. Quick response.
  2. Provide detailed quotation.
  3. Provide scheme design and site planning.
  4. Accept customer's visit.

On-sale Services

1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.

JS1000 Double Shaft Concrete Mixer
JS1000 Double Shaft Concrete Mixer

After-sale Services

  1. One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
  2. Make regular remote visits.
  3. Lifelong after-sales technical support service.

Customer Visits


Delivery


Application

Model JS1000
Capacity 50m3/h
Discharge Volume 1000L
Charge Volume 1600L
Loading type Hopper/Belt
Mixing blade speed 25r/min
Mixer motor power 37kw
Hoist Power 11kw
Water Pump Power 2.2kw
Overall weight 7800kg
Overall dimension 3660*2260*2800mm
