HZS50 50m3/h Bucket Concrete Batching Plant

  • Model: HZS50
  • Productivity:50m3/hr
  • Voltage:380V, 50/60Hz, 220V, 440V, can be customized
  • Power:101.7kw
  • Discharge height:4.1m
  • Control system : Fully automatic/Manual
  • Application : Construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

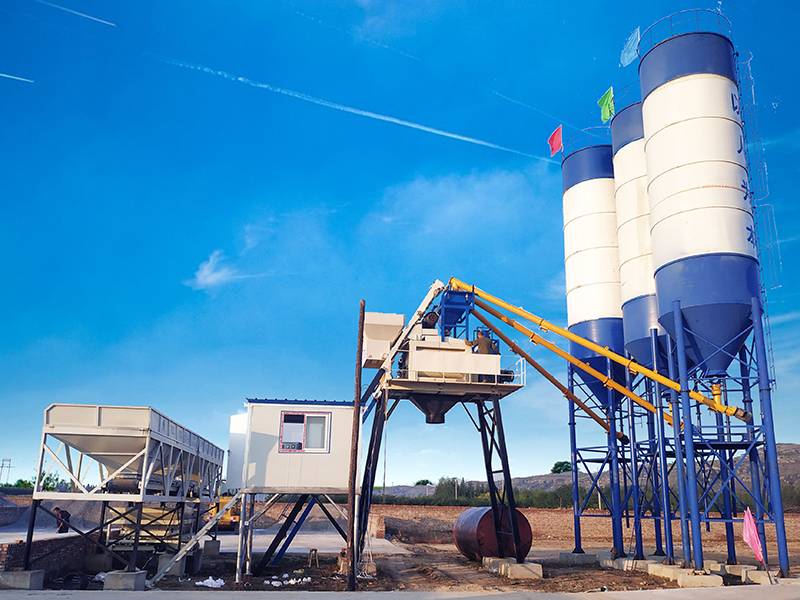

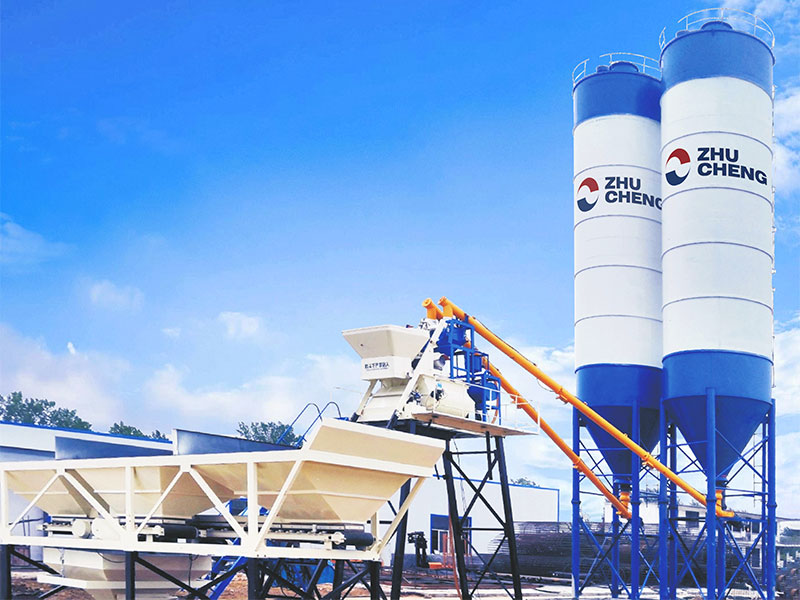

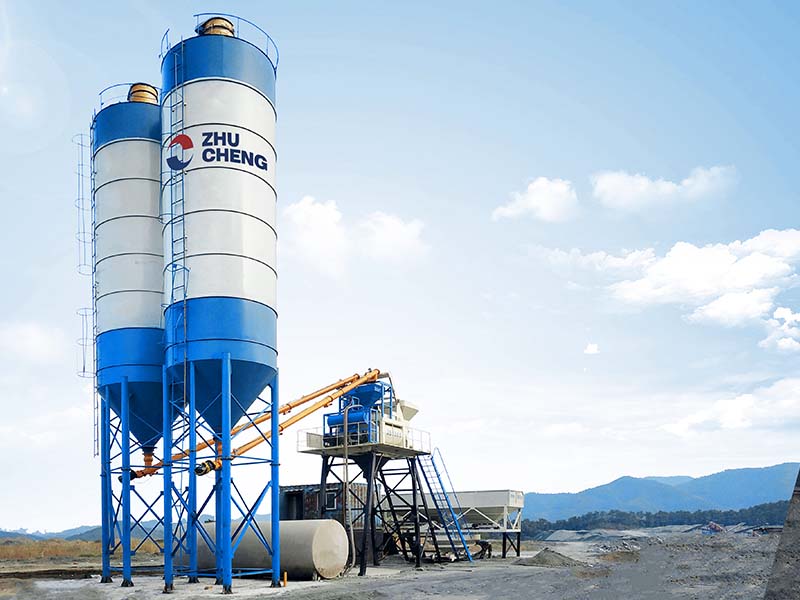

HZS50 50m3/h Bucket Concrete Batching Plant

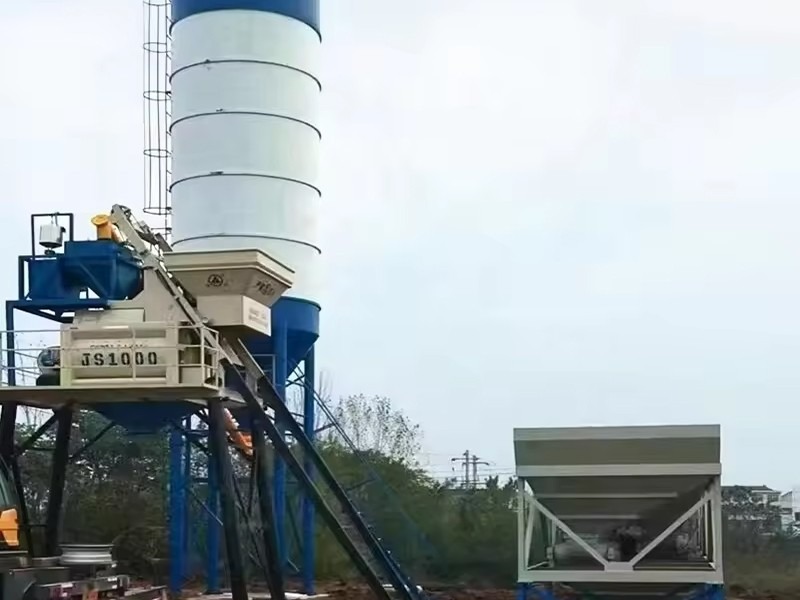

HZS50 bucket concrete mixing plant adopts a JS1000 double horizontal shaft concrete mixer, batching machine adopts a PLD1600 batching machine, the theoretical output is 50 cubic meters per hour.

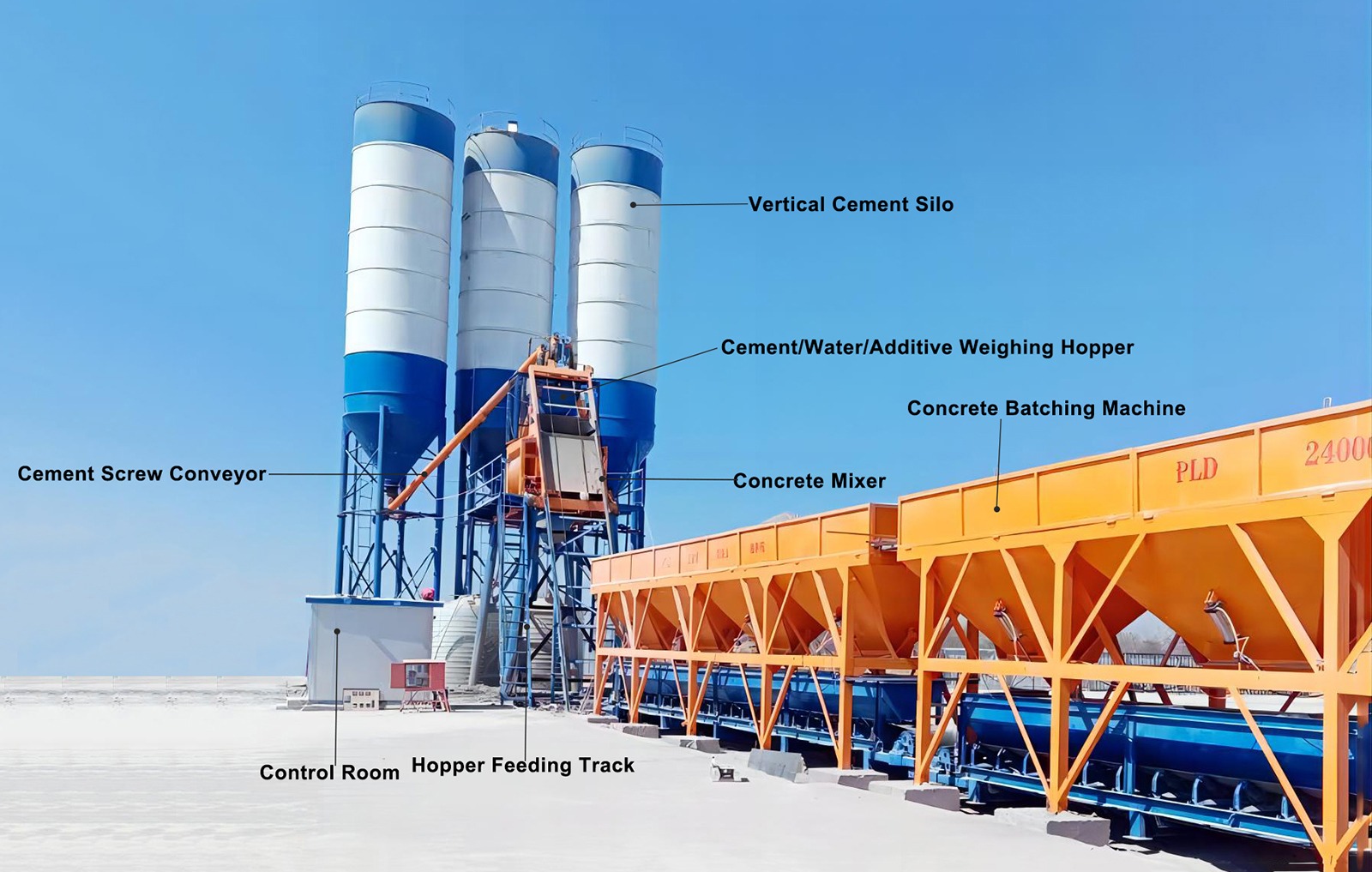

Main Details

HZS50 50m3/h Bucket Concrete Batching Plant

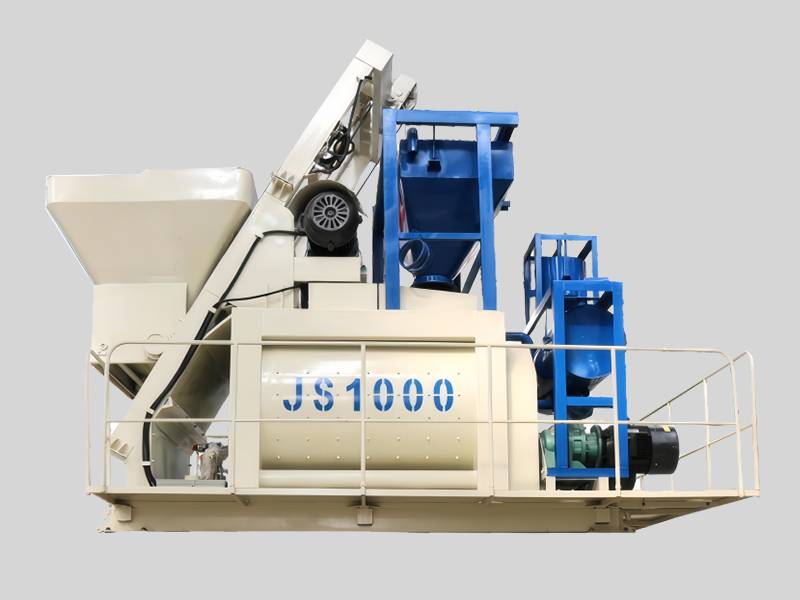

Mixing System

  1. Patented multi-end sealing technology to avoid leakage and protect shaft ends..
  2. Adopts wear-resistance blade and liner plates, lifetime is over 60,000 times.
  3. Equipped with auto lubrication pump to save labor and extend lifetime.
  4. Advanced motor and reducer driven system to keep stable performance.

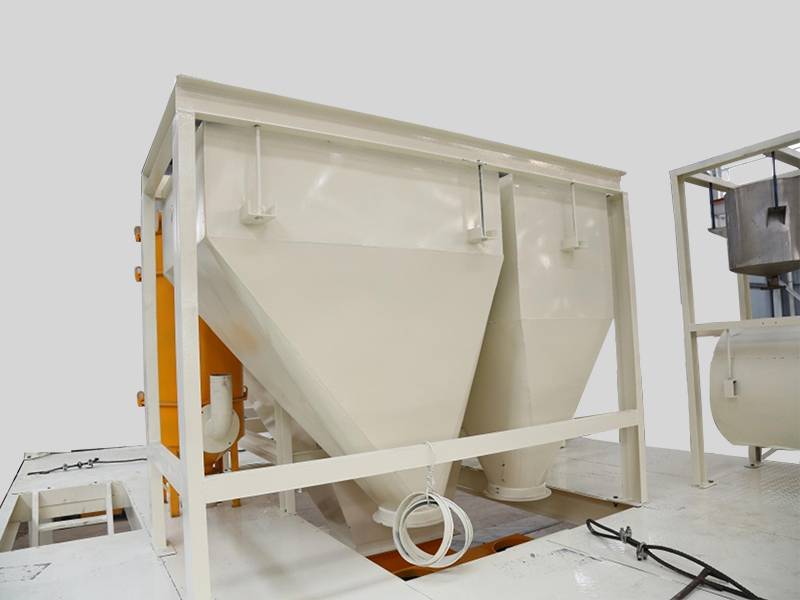

Weighing System

1. Powder and water or additives are measured independently, ensuring fast and high accuracy weighing.
2. Famous brand sensor ensures the error no more than 1%.

HZS50 50m3/h Bucket Concrete Batching Plant

HZS50 50m3/h Bucket Concrete Batching Plant

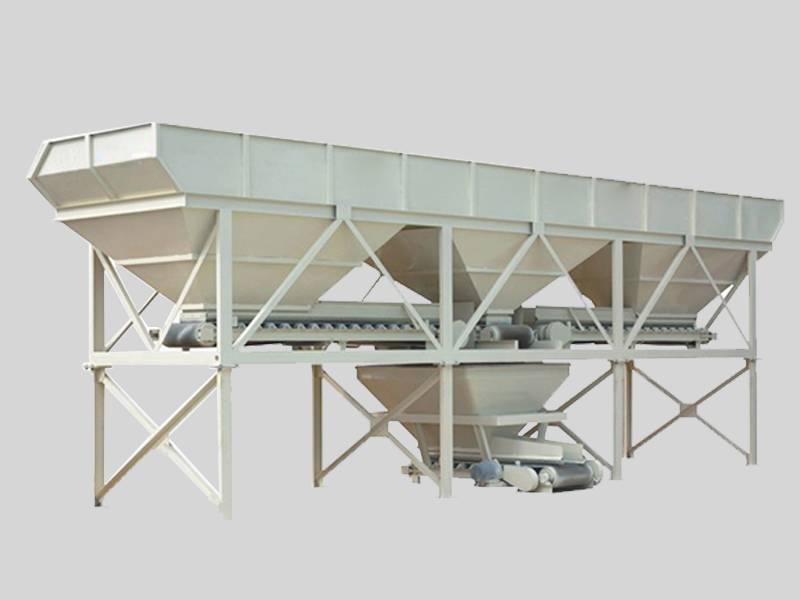

Aggregate Batching System

  1. Sand storage bin is with large vibrator, guarantee smooth and fast discharge.
  2. Accumulative weighing system or separate weighing system is available choice.
  3. High accuracy sensor ensures the error no more than 2%.

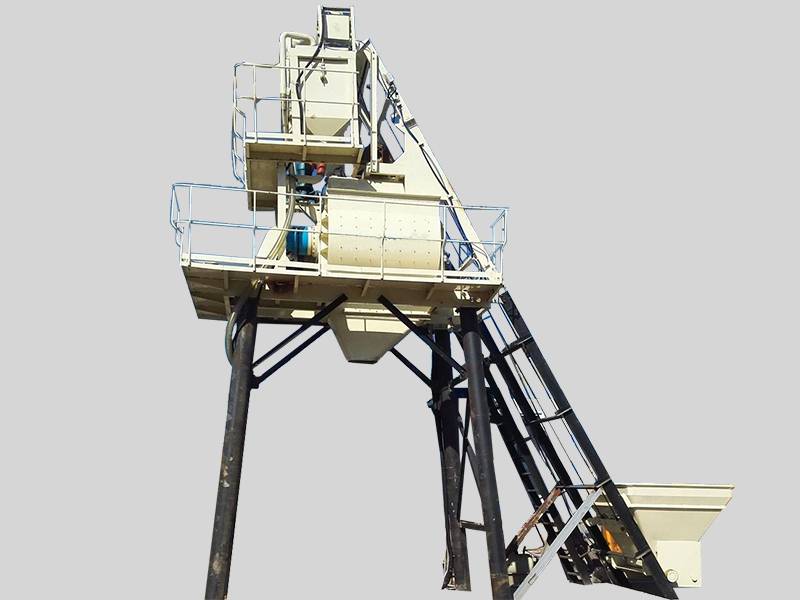

Aggregate Conveying System

  1. Adopt a bucket feeding method, flexible feeding and simple operation.
  2. Assemble ladder, sidewalk and handrail, easy for maintenance.
  3. Solid hopper pulley to ensure the durable performance.
HZS50 50m3/h Bucket Concrete Batching Plant

HZS50 50m3/h Bucket Concrete Batching Plant

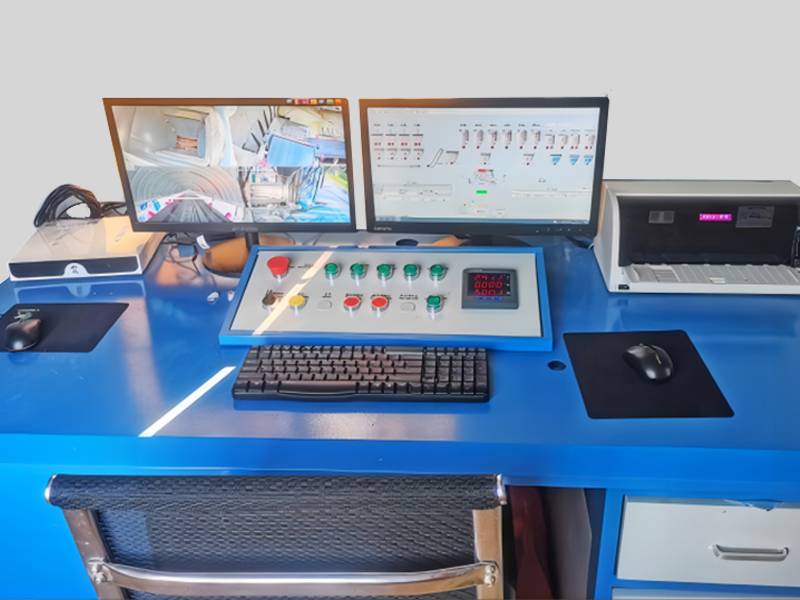

Control System

  1. Automatic or manual can be adjusted flexibly smoothly.
  2. All wires & cables are coded, easy to track and maintenance.
  3. Intelligent management system for task tracking, printing, etc.
  4. Computer+ PLC control system to ensure simple and stable operation, HD display can show clearly about the operation of each part.

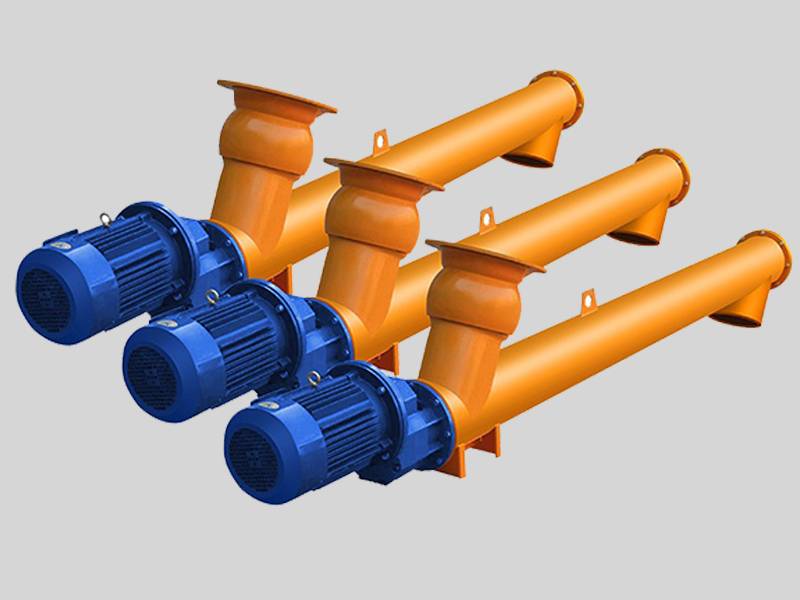

Cement Screw Conveyor

  1. High revolving speed, large conveying capacity and high precision.
  2. Easy assemble, easy connection and reliable sealing.
  3. Wide application: a variety of powder, granular or small bulk materials.
  4. Angle and length are all can be customized.
HZS50 50m3/h Bucket Concrete Batching Plant

HZS50 50m3/h Bucket Concrete Batching Plant

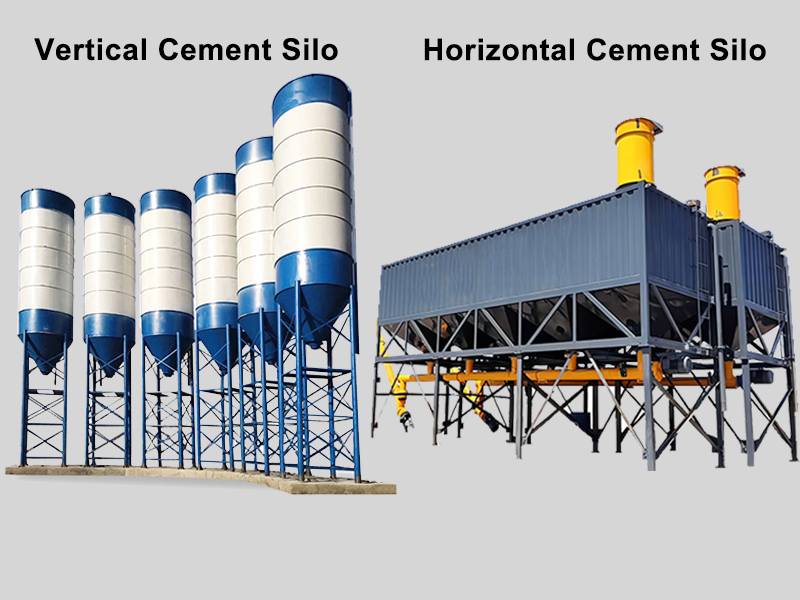

Cement Silo

  1. Vertical or horizontal cement silo is available for selection.
  2. Capacity range from 50T to 300T can be customized.
  3. Accessories are including air-break device, gate valve, relief valve, level meter, dust collector, etc.
  4. High-quality steel, good sealing, stable support and long service life.

Advantages


Service

HZS50 50m3/h Bucket Concrete Batching Plant

Pre-sale Services

  1. Quick response.
  2. Provide detailed quotation.
  3. Provide scheme design and site planning.
  4. Accept customer's visit.

On-sale Services

1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.

HZS50 50m3/h Bucket Concrete Batching Plant
HZS50 50m3/h Bucket Concrete Batching Plant

After-sale Services

  1. One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
  2. Make regular remote visits.
  3. Lifelong after-sales technical support service.

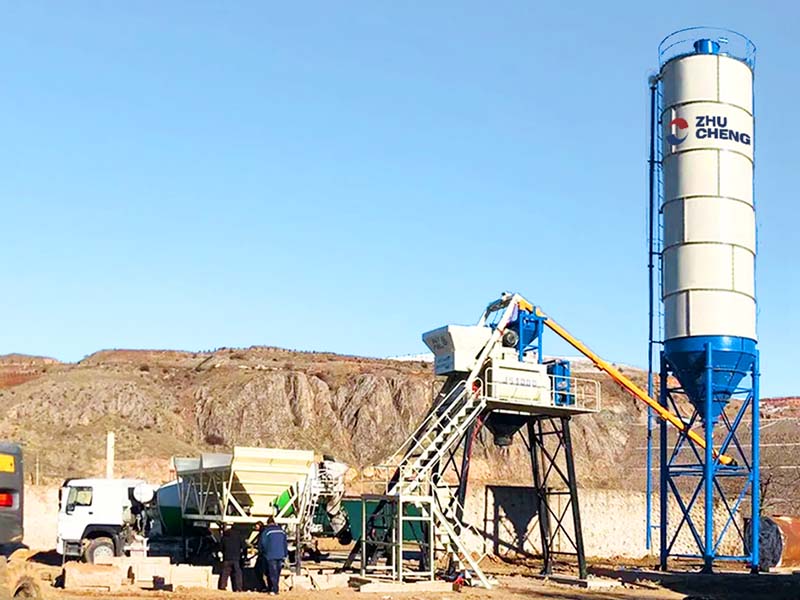

Customer Visits

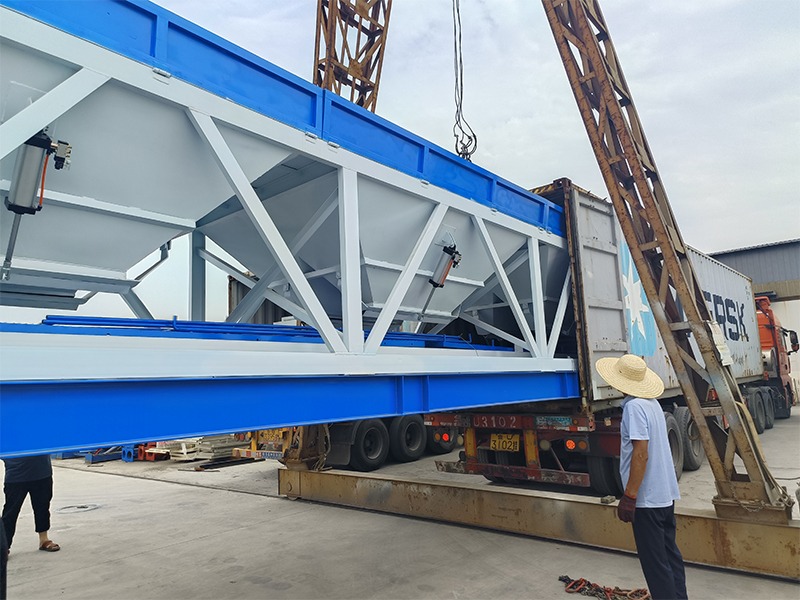

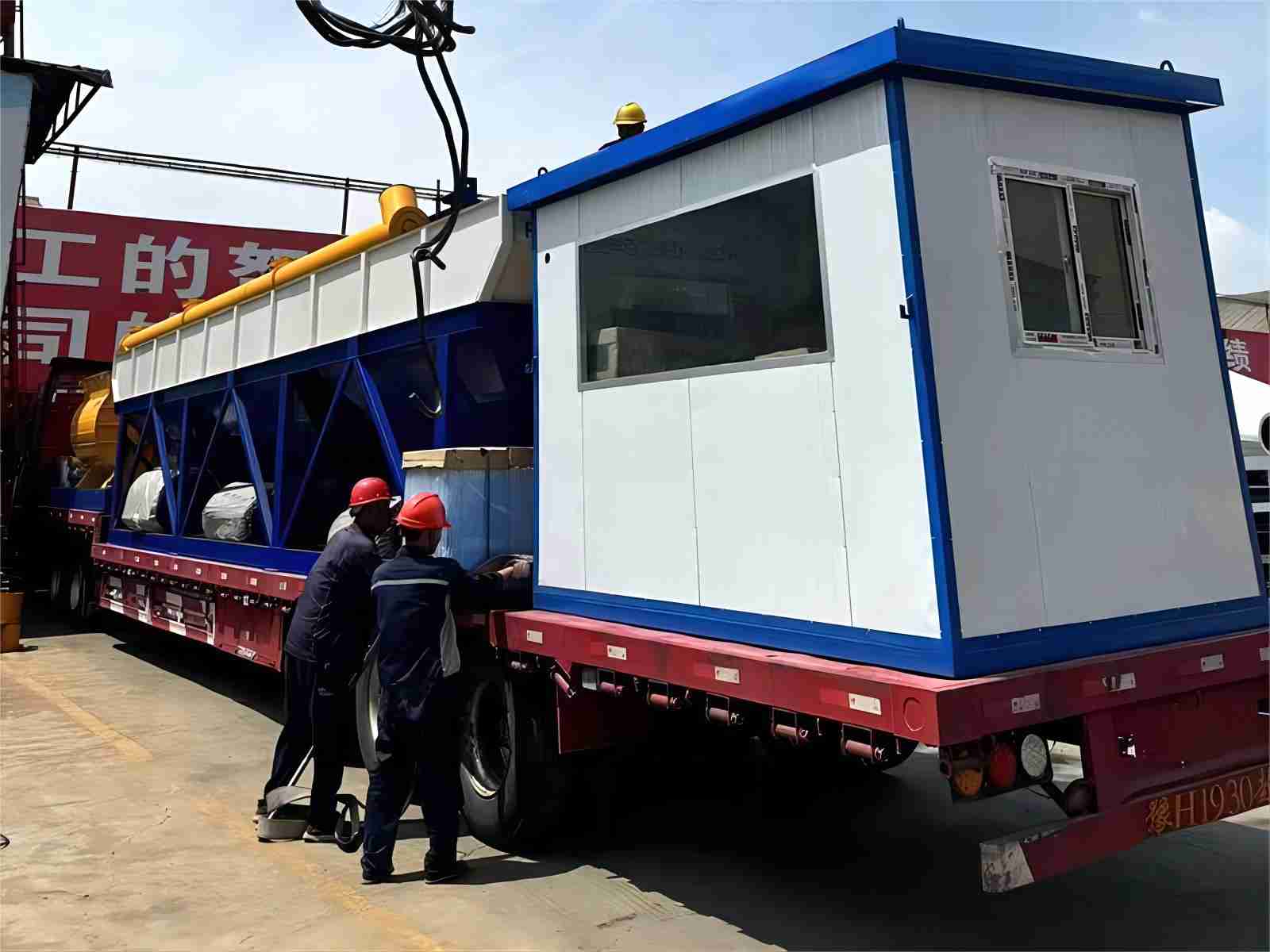

Delivery


Application

Whole
Machine
Model HZS50
Productivity 50m³/h
Discharge Height 4.1m
Total Power 101.7kw
Concrete Mixer Model JS1000
Discharge Volume 1000L
Charging Volume 1600L
Mixing Cycle 60S
Batching Machine Model PLD1600
Weighing Hopper Volume 1600L
Aggregate Silo Capacity 5m³
No. of Storage Hopper  2/3/4
Pneumatic System Air Compressor Model 1.0-7
Rated Exhaust Pressure 0.8MPa
Rated Displacement 1.67m³/min
Weighing System
Accuracy
Aggregate ±2%
Cement ±1%
Water ±1%
Additive ±1%
