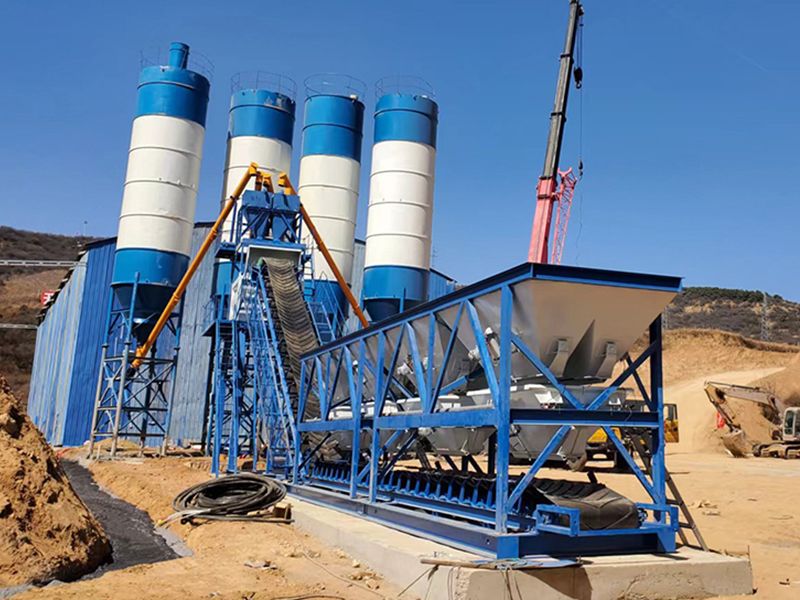

MHZS120 120m3/h Foundation-free Concrete Batching Plant

  • Model: MHZS120
  • Productivity:120m3/h
  • Voltage:380V, 50/60Hz, 220V, 440V, can be customized
  • Power:130kw
  • Discharge height:3.8-4.2m
  • Control system : Fully automatic/Manual
  • Application : Construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

MHZS120 120m3/h Foundation-free Concrete Batching Plant

MHZS120 foundation-free concrete batching plant adopts a JS2000 double horizontal shaft concrete mixer, batching machine adopts a PLD3200 batching machine, the theoretical output is 120 cubic meters per hour.

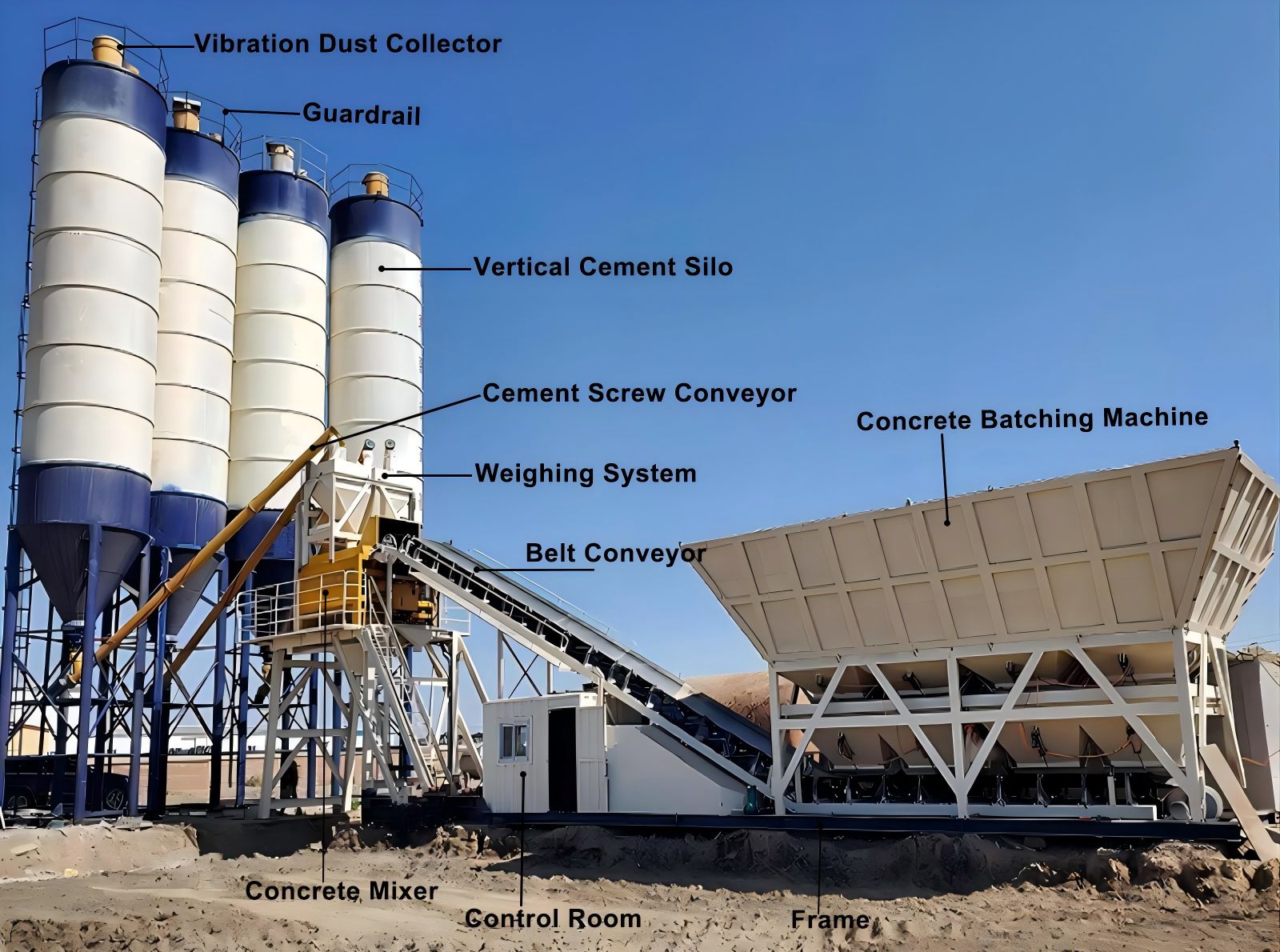

Main Details

MHZS120 120m3/h Foundation-free Concrete Batching Plant

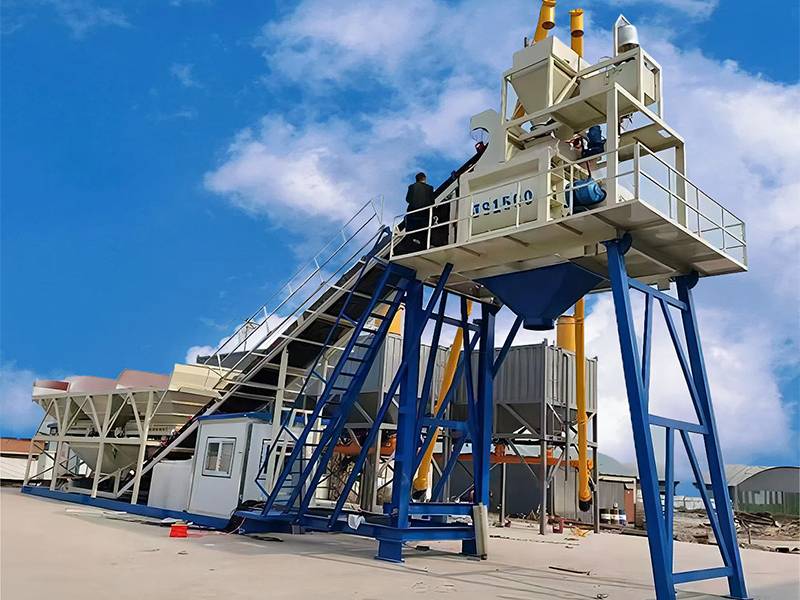

Mixing System

  1. Patented multi-end sealing technology to avoid leakage and protect shaft ends..
  2. Adopts wear-resistance blade and liner plates, lifetime is over 60,000 times.
  3. Equipped with auto lubrication pump to save labor and extend lifetime.
  4. Advanced motor and reducer driven system to keep stable performance.

Weighing System

1. Powder and water or additives are measured independently, ensuring fast and high accuracy weighing.
2. Famous brand sensor ensures the error no more than 1%.

MHZS120 120m3/h Foundation-free Concrete Batching Plant

MHZS120 120m3/h Foundation-free Concrete Batching Plant

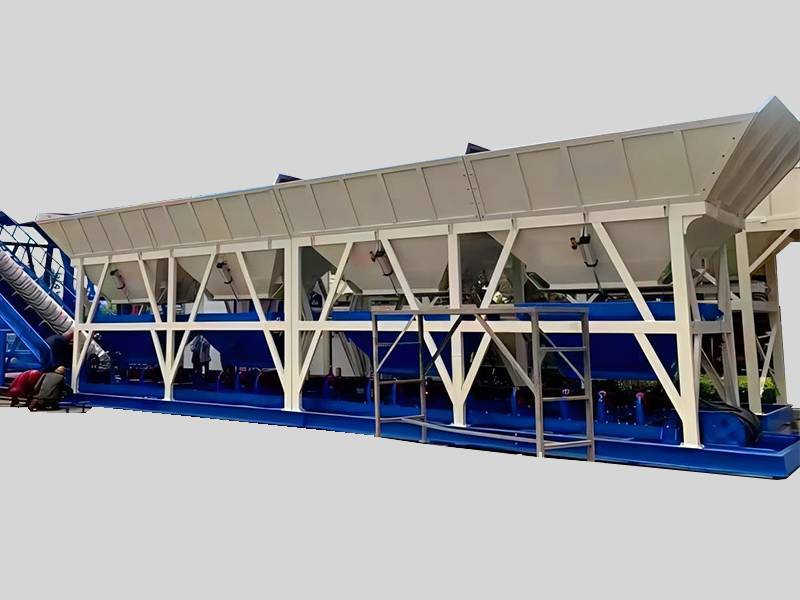

Aggregate Batching System

  1. Sand storage bin is with large vibrator, guarantee smooth and fast discharge.
  2. Accumulative weighing system or separate weighing system is available choice.
  3. High accuracy sensor ensures the error no more than 2%.

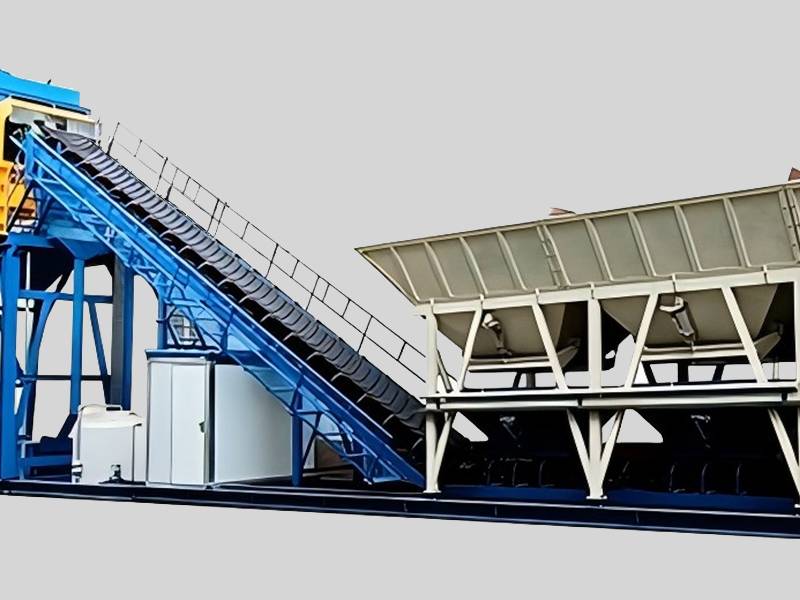

Aggregate Conveying System

  1. Inclined angle up to 32 degree, stand small area.
  2. Equipped with recycled belt conveyor to reuse the leakage material.
  3. Fully rain cover to reduce the dust emission and protect the belt if customers need.
MHZS120 120m3/h Foundation-free Concrete Batching Plant

MHZS120 120m3/h Foundation-free Concrete Batching Plant

Control System

  1. Automatic or manual can be adjusted flexibly smoothly.
  2. All wires & cables are coded, easy to track and maintenance.
  3. Intelligent management system for task tracking, printing, etc.
  4. Computer+ PLC control system to ensure simple and stable operation, HD display can show clearly about the operation of each part.

Cement Screw Conveyor

  1. High revolving speed, large conveying capacity and high precision.
  2. Easy assemble, easy connection and reliable sealing.
  3. Wide application: a variety of powder, granular or small bulk materials.
  4. Angle and length are all can be customized.
MHZS120 120m3/h Foundation-free Concrete Batching Plant

MHZS120 120m3/h Foundation-free Concrete Batching Plant

Cement Silo

  1. Vertical or horizontal cement silo is available for selection.
  2. Capacity range from 50T to 300T can be customized.
  3. Accessories are including air-break device, gate valve, relief valve, level meter, dust collector, etc.
  4. High-quality steel, good sealing, stable support and long service life.

Advantages


Service

MHZS120 120m3/h Foundation-free Concrete Batching Plant

Pre-sale Services

  1. Quick response.
  2. Provide detailed quotation.
  3. Provide scheme design and site planning.
  4. Accept customer's visit.

On-sale Services

1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.

MHZS120 120m3/h Foundation-free Concrete Batching Plant
MHZS120 120m3/h Foundation-free Concrete Batching Plant

After-sale Services

  1. One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
  2. Make regular remote visits.
  3. Lifelong after-sales technical support service.

Customer Visits


Delivery


Application

Model MHZS120
Productivity 120m³/h
Total Power 130kW
Working Cycle 60s
Concrete Mixer JS2000
Mixer Power 37kW*2
Batching Machine PLD3200
Aggregate weighing error ±2%
Water weighing error ±1%
Cement weighing error ±1%
Additives weighing error ±1%
Weight 58t
