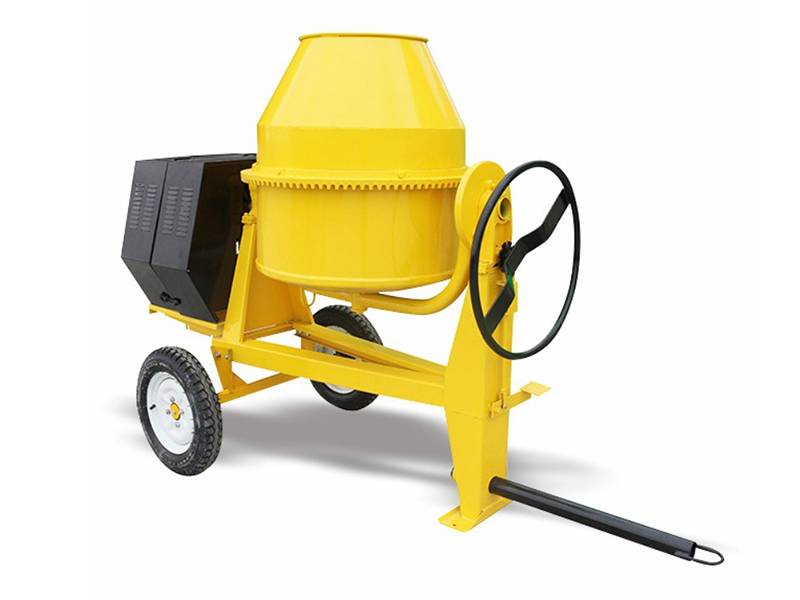

CM500 Mini Portable Concrete Mixer

  • Model: CM500
  • Drum Capacity:500L
  • Mixing Capacity:4000L
  • Productivity:6~8m³/h
  • Voltage:380V, 50/60Hz, 220V, 440V, can be customized
  • Power:6-10HP or 3KW
  • Application : Construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

CM350 Mini Portable Concrete Mixer

CM500 mini portable concrete mixer rotates forward to stir and reverse to discharge. Each drum can mix 400L of concrete, and can produce 6-8 cubic meters per hour. Equipped with two or four wheels, it is easy to move. This mixer can be made into air-cooled diesel engine, water-cooled diesel engine, gasoline engine and electric motor drive according to customer's needs.


Main Details

CM350 Mini Portable Concrete Mixer

Thickened Barrel Wall

Thick steel plate is adopted, which has strong bearing capacity, strong stirring force and is not easy to deform.


All Copper Durable Motor

Copper core rotor, providing sufficient power, lasting work, and not easy to burn at high temperature.

CM350 Mini Portable Concrete Mixer

CM350 Mini Portable Concrete Mixer

Gear Rotation

Stable performance, strong practicability and not easy to derail. U-shaped tube integrated punching structure. The gears are engaged, making less noise and smoother.


Diesel Power

Stable performance, powerful power and low fuel consumption.

CM350 Mini Portable Concrete Mixer

CM350 Mini Portable Concrete Mixer

Control Handle & Walking Wheels

It is convenient to rotate the feeding and discharging, and to fix the inclined hopper by itself. Big casters, easy to move, easy to use and good bearing capacity.


Advantages


Service

CM350 Mini Portable Concrete Mixer

Pre-sale Services

  1. Quick response.
  2. Provide detailed quotation.
  3. Provide scheme design and site planning.
  4. Accept customer's visit.

On-sale Services

1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.

CM350 Mini Portable Concrete Mixer
CM350 Mini Portable Concrete Mixer

After-sale Services

  1. One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
  2. Make regular remote visits.
  3. Lifelong after-sales technical support service.

Customer Visits


Delivery


Application

Model CM500-2C CM500-4C CM500-4D
Drum Capacity 500L 500L 500L
Mixing Capacity 400L 400L 400L
Productivity 6~8m³/h 6~8m³/h 6~8m³/h
Bags of Cement
Per Batch
1.5 Bag Cement(50kg/bag)
Drum Rotation Speed 25-30rpm 25-30rpm 25-30rpm
Upper Drum Thickness 3mm 3mm 3mm
Bottom Drum Thickness 4mm 4mm 4mm
Mixing Drum Size φ950×900mm
Tyre Size and Number 2×(4.00-12) 4×(4.00-12) 4×(4.00-12)
Power Option Air-cooledDiesel Engine 178FS(6HP)
Air-cooled Diesel Engine 186FS(10HP)
Water-cooled Diesel Engine R175(6HP)
Water-cooled Diesel Engine R180(8HP)
Honda Gasoline Engine GX270(9HP)
Electric Motor 3KW
Total Weight 300kg 320kg 360kg
Overall Size(LxWxH) 2100*1200*1800mm
20GP 12sets
40HQ 24sets
