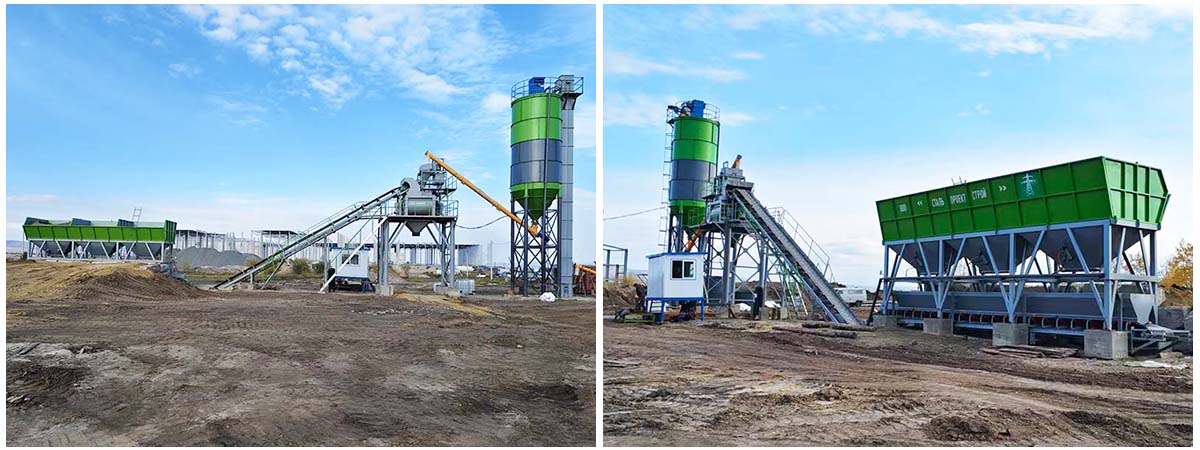

HZS90 Concrete Batching Plant in Russia
Our HZS90 concrete batching plant (with the capacity of 90m³/h) was installed in Russia recently.
This HZS90 concrete batching plant a high-efficiency, fully automatic stationary concrete production equipment designed for large-scale construction projects and commercial concrete production. With its robust configuration and intelligent design, it ensures reliable performance and exceptional productivity.
Main Configurations of HZS90 Concrete Batching Plant:
1. Mixing System:
Equipped with a JS1500 twin shaft concrete mixer, offering a nominal capacity of 1.5 m³ per batch. It ensures thorough and homogeneous mixing of concrete with high efficiency and low energy consumption.
2. Batching System:
Includes a PLD2400 batching machine with 3‒4 aggregate bins. Each bin is independently weighed with high precision. The system supports various aggregate sizes (max. 80mm) and offers weighing accuracy of ±2% for aggregates and ±1% for cement, water, and additives.
3. Control System:
Fully automated computer-controlled operation with touch-screen interface. Supports recipe storage, production data tracking, and remote monitoring. User-friendly and customizable for different project requirements.
4. Storage and Conveying:
· Aggregate storage: Available in line or star-shaped arrangement with a storage capacity of 4×20 tons.
· Belt conveyor: Inclined belt conveyor with high durability and smooth operation for efficient material transfer.
· Cement silo: Commonly paired with 100‒200-ton cement silos, equipped with dust filters and level indicators.
5. Powder and Water Metering:
Precision metering for cement, fly ash, and water. Includes screw conveyors for powder materials and a water meter with a centrifugal pump.
Advantages of HZS90 Concrete Batching Plant:
· High Output: Capable of producing up to 90 m³ of concrete per hour.
· Accuracy: Advanced weighing sensors and control algorithms ensure precise batching.
· Durability: Built with high-quality steel and components for long-term use under tough conditions.
· Easy Maintenance: Modular design allows quick access to key components for service and cleaning.
· Adaptability: Suitable for diverse environments including cold climates (with heating options) and remote sites.
· Energy Efficiency: Optimized power consumption reduces operational costs.
Applications HZS90 Concrete Batching Plant:
· Large infrastructure projects (bridges, highways, dams)
· Precast concrete plants
· Commercial ready-mix concrete production
· Industrial and residential construction sites
The HZS90 concrete batching plant combines performance, reliability, and eco-friendliness, making it a top choice for global contractors seeking quality and efficiency in concrete production.
