Free Foundation Concrete Plant in Shanxi

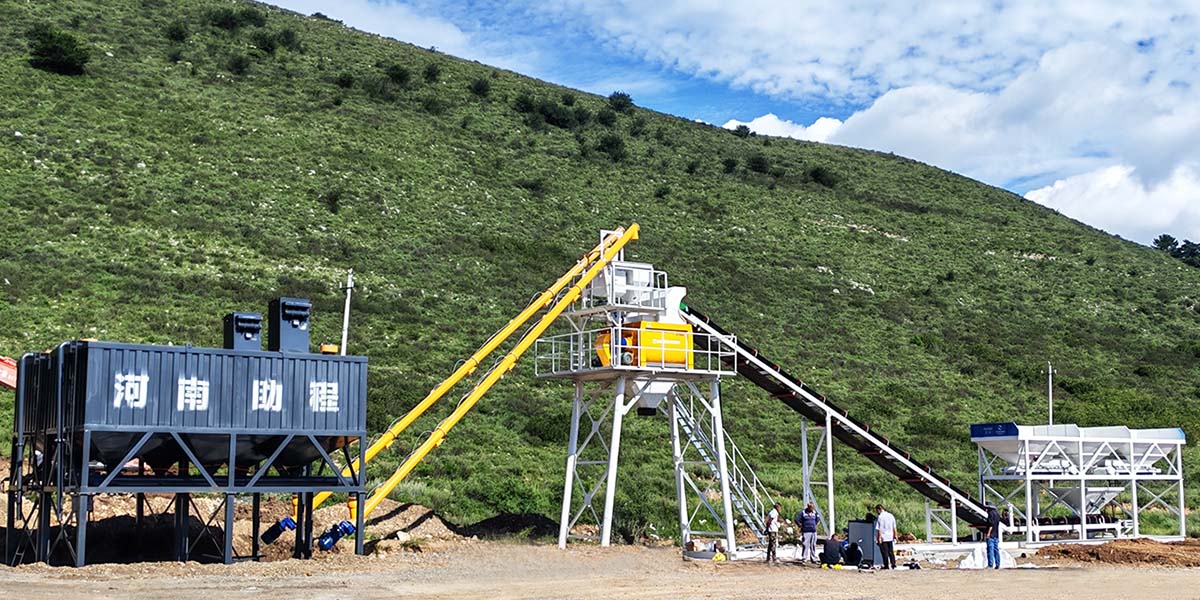

Our MHZS60 free foundation concrete plant was Installed In Shanxi, China.
Introduction of MHZS60 Free Foundation Concrete Plant
MHZS60 free foundation concrete plant is an innovative and efficient solution for rapid deployment in industrial and construction settings. Unlike traditional batching plants that require extensive foundation work, this modular design allows for quick assembly directly on compacted ground, significantly reducing installation time and costs. This article outlines the key steps and considerations for assembling such a plant within a factory area.
Configurations of MHZS60 Free Foundation Concrete Plant
1. Batching Machine Frame: A robust, pre-engineered steel structure that integrates all major components. Its design distributes loads evenly, eliminating the need for deep-pile foundations. It often incorporates quick-connection systems for fast assembly and disassembly.
2. Concrete Mixer: The central unit is JS1000 twin-shaft concrete mixer with a nominal capacity of 60 cubic meters per hour (1m³ per batch is common). It ensures thorough and efficient mixing of concrete.
3. Aggregate Batching System: Equipped with three bin concrete batching machine, for storing and weighing different sizes of aggregates (sand, gravel, stone). Equipped with high-precision load cells.
4. Cement Silo: Equipped with horizontal cement silo. They include necessary accessories like a dust filter, level indicator, and safety valve.
5. Screw Conveyor: Transfers cement from the silo to the weighing hopper in a sealed, efficient manner, preventing dust leakage.
6. Water & Additive System: Includes a water tank, water pump, water meter, and an additive tank with a pump and meter for precise dosing of water and liquid admixtures.
7. Control System: A fully automated, computer-based control system housed in an operator cabin. Features a user-friendly interface (often touchscreen) for recipe management, production monitoring, data recording, and remote diagnostics.
Advantages of MHZS60 Free Foundation Concrete Plant:
1. Fast Installation & Dismantling: Can be assembled and ready for production in a matter of days, compared to weeks for a traditional plant.
2. Low Site Preparation Cost: Saves significantly on civil engineering work (excavation, concrete, rebar).
3. High Mobility & Reusability:** Designed to be easily relocated and redeployed on new project sites, offering excellent investment protection.
4. Environmental Friendliness: Minimizes permanent alteration to the site and allows for complete removal with minimal residual impact.
5. Modular Design: Components are pre-wired and pre-piped for quick and error-free connection.
Typical Applications of Free Foundation Concrete Plant:
Temporary Construction Projects: Railways, highways, bridges, hydropower stations.
Commercial Concrete Production: For supplying ready-mix concrete to multiple local projects.
Precast Concrete Factories: Where production lines may need to be reconfigured.
Remote or Difficult Sites: Where extensive foundation work is impractical or too expensive.
Leased Land Projects: Ideal for situations where the land must be returned to its original state.
The MHZS60 Free Foundation Concrete Plant offers a perfect blend of efficiency, flexibility, and cost-effectiveness for modern construction needs, making it a highly attractive alternative to fixed foundation plants.
