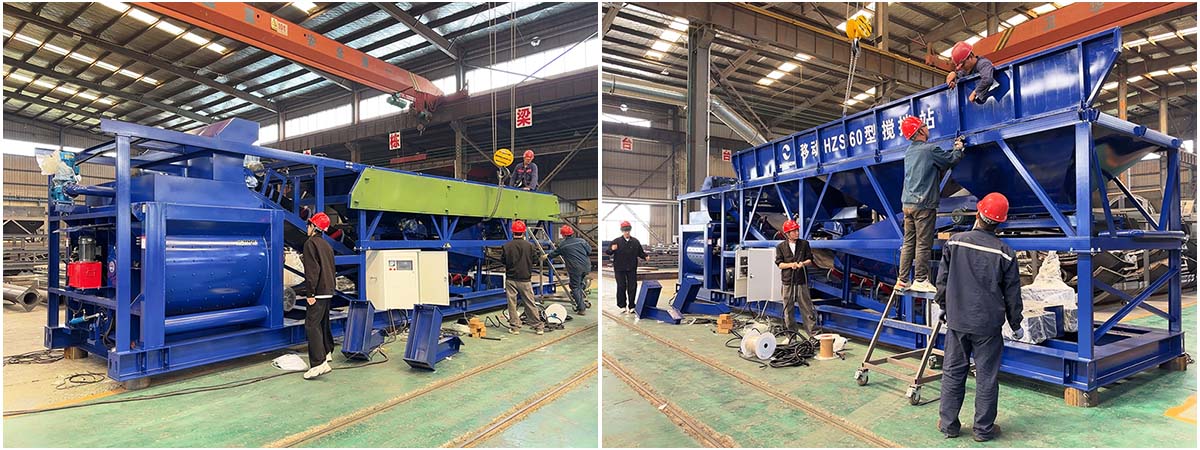

YHZS60 Mobile Concrete Batching Plant in Production
The YHZS60 mobile concrete batching plant has become a popular choice for medium-scale construction projects requiring both productivity and portability. With a theoretical output of 60 m³/h, this mobile batching plant is engineered for rapid deployment and high-intensity on-site production.
Integrated Design for Rapid Setup:
Unlike traditional stationary plants, the YHZS60 portable concrete batching plant features a compact, chassis-mounted design. All core components—including the aggregate bins, belt conveyor, twin-shaft concrete mixer, cement weighing system, and control cabin—are integrated onto a single frame equipped with axles and towing pins. This allows the entire concrete plant to be relocated using a standard tractor truck. No complex concrete foundations are required; a compacted level surface is sufficient for operation. Consequently, the mobile batching plant can be fully operational within 24 to 48 hours after arriving on a new job site.
Core Production Specifications:
At the heart of the YHZS60 mobile concrete plant, there lies a twin-shaft forced concrete mixer (typically 1m³ per batch), which delivers exceptional homogenization for high-strength concrete mixes. This mobile concrete batching plant is equipped with three aggregate compartments and a PLC-based automatic weighing system, achieving accuracy rates of ±2% for aggregates and ±1% for cement and water. This precision ensures consistent concrete quality—critical for roadworks, bridges, and housing foundations.
Operational Advantages in the Field:
On active production sites, the YHZS60 mobile batching plant excels due to its single-operator automation. The enclosed control room provides a clear view of the concrete mixer, allowing one person to manage batching, mixing, and documentation. Eliminating ready-mix truck transit times reduces the risk of slump loss, ensuring workability at the pour point. Maintenance access is also simplified, with walkways and service platforms integrated into the mobile frame.
For contractors balancing multiple medium-distance projects, the YHZS60 mobile concrete batching plant offers an optimal solution. It combines stationary-plant reliability with towable flexibility, reducing both logistics costs and idle time. Whether producing concrete for rural highways or urban infill projects, this mobile plant proves that high output need not sacrifice mobility.
